Boıler Wıth A Sıngle Coıl

Our Products

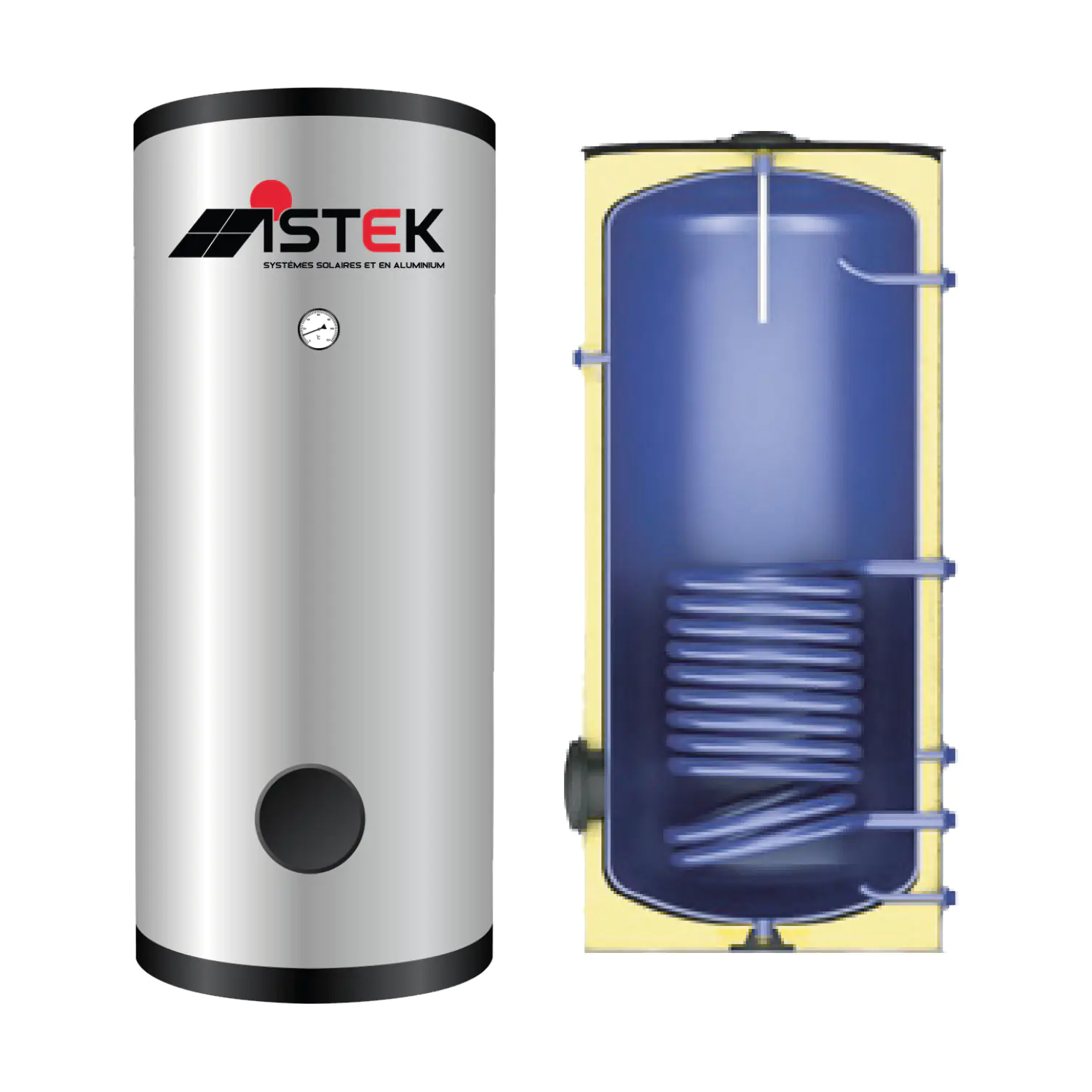

Boiler With A Single Coil

İSTEK Boiler with a single coil is used in places where hot water is prepared and stored only with the help of a heat source (hot water boiler, steam boiler, solar energy panels, heat pump, geothermal energy, etc.) such as hotels, monuments, villas, and various other places where hot water is needed.

Technical Specifications:

Product selection ranging from 100 to 2000 liters each,
Hygienic and corrosion-resistant (wear-resistant) thanks to the enamel material of 250-300 micron titanium additive,
Polyurethane with a density of 50 mm 44 kg/m3 for 160 liters up to 600 liters, soft polyurethane insulation with a thickness of 80 mm for 800 liters up to 2000 liters,
Electrostatically painted sheet metal with powder coating on galvanization from 160 liters up to 600 liters, special winlex sheath from 800 liters up to 2000 liters
Cathodic protection using magnesium anode stick
Optional electric resistance
White, simple, and elegant appearance (Different colors according to preference)
Working pressure of 10 bar, test pressure of 13 bar
Easy and quick installation possibility
